2D-Look vs 3D-Look Animation: Compare One Story and Its Deliverables

Freeze the story so the comparison answers the right question

A dimensional robot with an elaborate camera move may look more spectacular than a flat robot standing still. That comparison changes both the look and the direction. It cannot tell you which treatment better serves the same story.

For this exercise, hold the following brief constant:

The worked storyboard contains the full shot cards and separate starting-image and motion instructions. Here, those cards become the common comparison brief. Do not rewrite the rescue into a chase for one treatment or add a dramatic jump to its ending.

Some apparent differences need interpretation. A flat circle and a shaded sphere can represent the same ball. A wholly different ball size, path or contact point changes the staging. Decide which differences belong to visual treatment and which violate the fixed brief before reviewing candidates.

Define the two looks with observable rules

“Make it 2D” and “make it 3D” leave many decisions open. A hand-drawn watercolor film, a clean vector explainer and a cut-paper animation can all look two-dimensional while behaving differently. Likewise, a clay character, a glossy toy and a realistic metal robot are different dimensional treatments.

For this story, use two specific alternatives.

Treatment A: flat illustrated animation

Use consistent dark outlines, mostly flat copper, yellow and red color areas, and a pale background. The robot's eye is a simple oval. The ball remains a clear circle. The tabletop edge and bar are separated by outline and color contrast rather than complex lighting.

Movement should preserve readable shapes. The arm lowers the bar; the body makes a small attentive shift; the ball changes position without turning into a different shape. A little drawn squash can be part of an approved style, but do not add it only to hide failed contact or unexplained size changes.

This treatment serves a story whose main strength is immediate graphic clarity. It also creates specific review work: line weight should not pulse, outlines should not disappear during contact, and overlapping shapes must still make the ball-to-bar relationship understandable.

Treatment B: softly modeled toy animation

Keep the same proportions and colors, but describe rounded edge bevels, matte copper surfaces, a yellow painted wooden ball and a red painted bar. Use a soft key light from upper left and restrained shadows that anchor the objects to the table. Avoid mirror-like reflections or heavy depth blur that would distract from the rescue.

The robot should feel like a small modeled toy, not a new mechanically complex character. Dimensional shading can explain volume and placement, but it also needs continuity. The ball's highlight, its contact shadow and the bar's shadow should agree with the light and the object positions.

This treatment is useful when the sense of a tangible object matters to the intended film. It does not establish that the footage was produced from an accessible 3D scene. Shading is visible evidence of an appearance; editability requires an actual file and working controls.

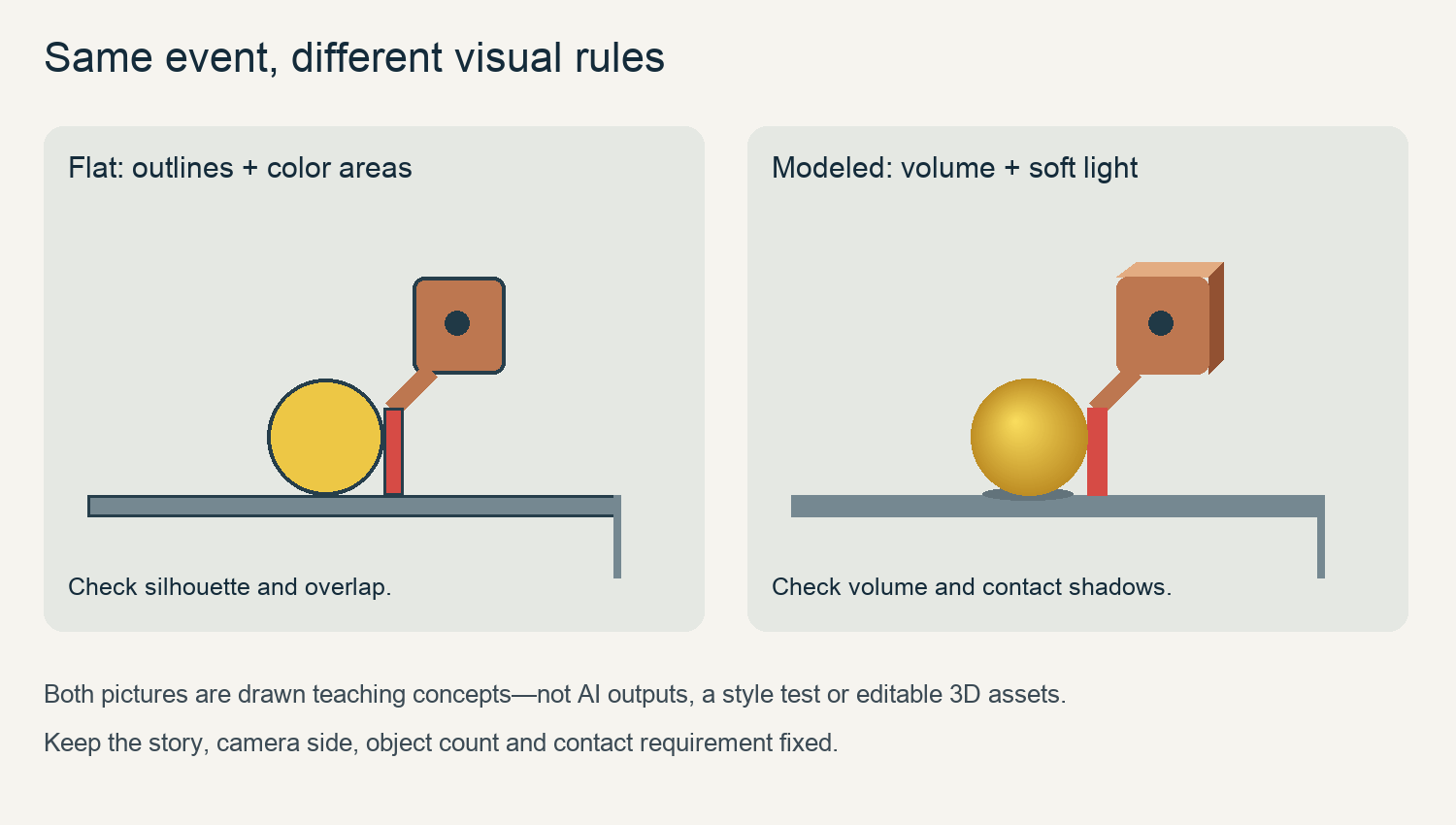

Original instructional drawings of two treatment rules. These are raster teaching concepts, not AI outputs, an executed comparison or editable 3D assets.

Compare the same four shots, not just two hero images

A single still can establish palette and appeal. It cannot establish whether the outlines stay stable, whether the contact works or whether the ending connects with the insert. Approve the look at the image stage, then qualify the most demanding motion before producing every shot.

For this story, the contact insert is a stronger qualification than a calm portrait of the robot. It exposes object separation, motion, contact and the safety margin in one short piece. The robot's lowering shot is a second useful check if the grip and arm movement are essential to the design.

Prepare paired treatment inputs in Dreamina

Begin with one rough layout that fixes the ball, bar and edge positions. Use the same layout for both treatments, then prepare a separate approved robot image for each. A flat reference may define the flat version's outlines; a modeled reference may define the modeled version's surface and proportions. They should depict the same design, not two unrelated mascots.

Dreamina's Seedream 5.0 Pro guide documents AI Image, text or image upload, model selection, aspect ratio and resolution, then generation, review and download. Use that path to create the treatment candidates. Keep the output aspect ratio and planned framing comparable; a close-up and a distant wide view are poor side-by-side style choices.

Here are two proposed starting-image instructions for the same contact insert.

Flat treatment:

Use the approved layout for composition. One yellow wooden ball sits just to screen left of one lowered red rectangular bar on a gray workbench. The bar meets the tabletop and crosses the ball's path. The copper square robot holds it from behind; show only the grip and body portion required by the insert. Keep visible tabletop between the bar and the drop at screen right. Render as clean flat illustration with consistent dark outlines, solid color areas and minimal shading. Preserve the established object sizes. No extra objects or lettering.

Modeled treatment:

Use the same approved layout and object sizes. One yellow painted wooden ball sits just to screen left of one lowered red rectangular bar on a gray workbench. The bar meets the tabletop and crosses the ball's path. The copper square robot holds it from behind; show the same grip and body portion as the flat treatment. Keep visible tabletop before the drop at screen right. Render with a softly modeled toy appearance, restrained rounded edges, matte materials and a soft upper-left key light. Use grounded contact shadows and clear focus. No extra objects or lettering.

Compare the resulting images against the layout. If one version moves the bar closer to the edge or enlarges the ball dramatically, correct that staging difference before judging the treatment. Changing several dimensions at once may produce two appealing illustrations without producing a useful comparison.

Keep the motion instruction common, then add one style constraint

The documented Seedance 2.5 how-to describes the AI Video/Omni reference route and identifying uploaded references in the prompt. Assign the relevant treatment image and layout their intended roles. A reference for visual identity is different from a dedicated first-frame control; follow the controls of the selected mode rather than assuming they are interchangeable.

Use this proposed shared action instruction for both treatments:

One four-second stationary close-up. From 0–2 seconds, the single yellow ball rolls a short distance from screen left toward the lowered red bar, contacts it and stops. From 2–4 seconds, the ball rests against the bar. The robot holds the bar firmly at the tabletop. Keep the table edge at screen right with a visible safety margin beyond the barrier. No camera move, cut, extra sphere, disappearance or pass-through.

For the flat version, add: “Maintain the accepted flat color areas, outline weight and clear separation of shapes throughout the motion.” For the modeled version, add: “Maintain the accepted matte materials, rounded forms, upper-left light and grounded contact shadows throughout the motion.”

Those additions describe the visual behavior to inspect. They do not guarantee stable lines or physically correct shadows. Likewise, using identical action wording does not make two stochastic generations a controlled performance benchmark. Keep the actual settings, inputs, candidate count and accepted range if you later run the comparison; judge the observed candidates at their stated scope.

Check whether your chosen controls can be combined

Some interfaces make style and endpoint controls mutually exclusive. Adobe's Firefly Video instructions describe 2D and 3D style presets, while adding first/last frames disables Style and selecting a style disables endpoint frames in that documented beta-editor route.

That is a Firefly-specific control relationship, not a Dreamina limitation. It illustrates why “use exactly this first frame and switch on a 3D preset” is not a universal recipe. Verify the selected model's actual controls, and express the treatment through the approved input where appropriate. A label saying 3D remains a visual setting unless the product also supplies the required editable asset.

Review the result by story clarity and revision work

Watch the whole candidate at normal speed first, then inspect suspicious intervals. At the intended viewing size, can you immediately identify the ball, the lowered bar and the safe space before the edge? A beautiful surface is secondary if the intervention is hard to read.

Then make the comparison concrete:

A useful hypothetical revision is “make the bar blue, lower it half a second earlier and keep the rest approved.” For generated footage, this is a request for revised imagery and timing that must be reviewed again. A prompt does not necessarily isolate the bar. In a properly constructed layered or 3D project, there may be separate artwork/material and timing controls—but only if the actual project contains them.

Do not declare a treatment cheaper from one attractive image. Account for approved inputs, discarded candidates, motion failures, continuity fixes and finishing. If the piece will be revised repeatedly, include asset preparation and later edit effort. No completed cost or speed comparison is claimed here.

Ask for the asset that matches the revision

There are two independent decisions: what the video should look like, and how its animation is produced. A 3D scene can render with flat shading; layered drawings can create a dimensional-looking character; generative footage can imitate either. The visible style alone cannot identify the source structure.

A rendered-look delivery

For either Dreamina treatment, retain approved input images, prompts/settings, original clips and the finishing project with its used media. Deliver the requested video and inspect it from start to finish. If the only character files are PNGs and MP4s, describe that package accurately. Do not rename it an editable rig because the robot looks like a toy.

This is enough when the desired deliverable is a reviewed short film and future changes can tolerate new candidates. The workflow selection guide gives the broader route decision for clips, explainers and repeatable characters.

An editable 2D delivery

For a puppet route, request structured artwork and the actual working animation project. Adobe's Character Animator artwork guidance explains how structured, named Photoshop or Illustrator layers support tags and behavior control. A single flat drawing does not demonstrate that preparation.

For the robot, inspect the body, arms and bar relationships in the supplied project. Reopen it, perform the required lowering gesture, and check that the hidden parts remain drawn when the arm moves. Keep the ball/contact animation editable too if the revision depends on it; a controllable robot placed over baked-in ball footage does not make the whole collision editable.

Adobe's puppet export documentation distinguishes a self-contained .puppet from recorded takes and timeline-instance changes, which are excluded from that asset. Supply the working project when those performances need to be retained, and verify the relevant controls after reopening. This is a proposed acceptance procedure, not a completed puppet build.

An editable 3D delivery

Request the actual scene and assets, including the robot geometry, usable animation controls, ball and bar objects, materials, lights, cameras and required external files. Agree which items must be independently changeable. A mesh alone may permit a shape edit without providing an arm-performance setup; rendered turnaround images provide neither proof.

A practical acceptance sequence is to open the supplied scene, select the intended bar object or control, change its approved color, move the relevant animation timing and preview the same contact shot. Save a revision, reopen it and confirm that the dependencies resolve. This qualifies a supplied editable scene; it is not a claim that a generated video can be converted automatically into one.

Maya's animation layers documentation describes animation curves and layered modifications. Its render settings documentation separately specifies image-sequence naming, frame ranges and renderable cameras. These are distinct from the final rendered frames. Retain the editable scene as well as the render and finishing project when the delivery requires both.

Fix the failure at the level that caused it

If flat outlines shimmer while the action is correct, examine the style reference and the offending interval. Simplify unnecessary texture and request a more stable treatment, then review the new result. If the ball passes through the bar, changing outline weight will not repair the contact event.

If the modeled version appears to float, check the starting image first. The ball may already lack a believable table relationship, or its shadow may sit apart from it. If the input is sound and the defect appears only during motion, target that shot's motion/rendering problem. Stronger lighting adjectives are not proof of a successful repair.

If both versions fail at the same contact moment, reconsider the action route. Use an editable insert if continuous contact must be exact, or explicitly revise the board if the film can imply the outcome through a cut. Keep the same standard for both treatments rather than forgiving one because it looks more sophisticated.

Finally, compare the actual sequence. The assembly guide handles usable ranges, adjacent-shot mismatches, pacing and sound. A successful style image can still produce a poor cut; check the full film before approving the treatment for every shot.

Make a choice you can explain in one sentence

For an information-led version where bold shapes and immediate readability are the priority, the flat treatment is a sensible proposed starting point. For a piece whose appeal depends on a tactile toy-world impression, the softly modeled treatment is a sensible proposed starting point. Neither recommendation is an observed winner from this example; the contact shot and assembled sequence still need to pass.

Record the decision with its asset requirement: “Use the flat illustrated look and deliver editable artwork plus the animation project,” or “Use the modeled toy look and deliver reviewed video, with new generation accepted for later performance changes.” If an editable 3D scene is required, add it explicitly and qualify that separate production path.

Start in Dreamina with the same story layout and one purposeful treatment pair. Compare what the viewer can understand, what the motion preserves and what your next revision can actually change. That produces a defensible production choice instead of a preference based on two unrelated pictures.
